APPLICATION
CY LSZH Screened Cable is used as interconnecting cable for measuring, controlling or regulation in control equipment for assembly and production lines, conveyors and for computer units. Suitable for fixed installations or for flexible use when temporarily moved, and in conditions of medium mechanical stress. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment. Can be used outdoors when protected, and in dry or moist conditions indoors.
STANDARD
BS6500, VDE0250, IEC 60332-3, IEC 60754-1
CONSTRUCTION

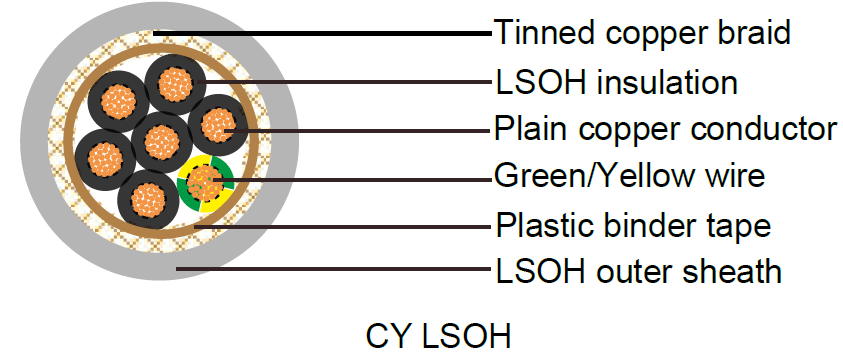

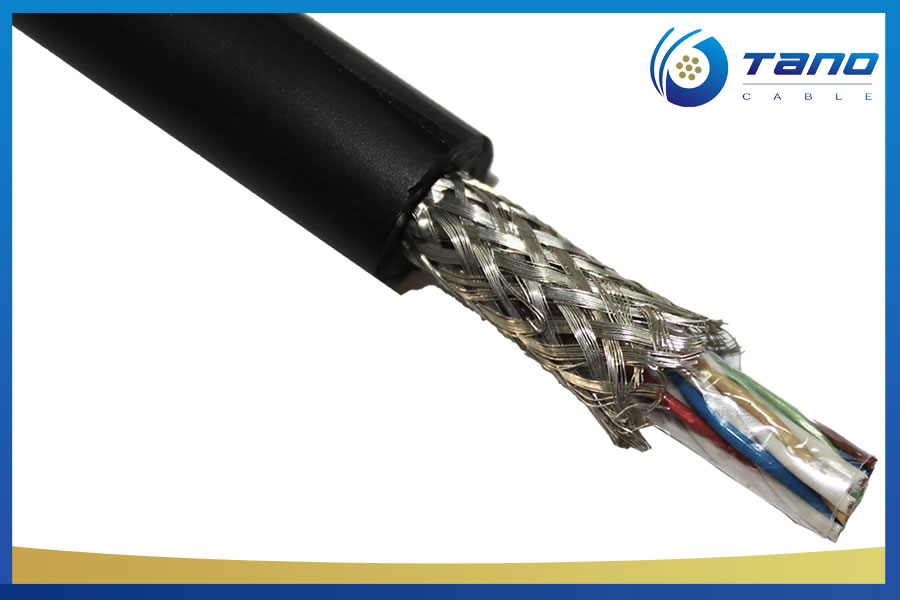

Plain copper conductor Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5 IEC 60228 cl.5 LSOH core insulation H12- DIN VDE 027 PT23 Color coded to VDE-0293-308 Green-yellow grounding (3 conductors and above) Plastic binder tape Tinned Copper Wire Braid Screen LSOH outer jacket
TECHNICAL DATA
Working voltage: 300/500 volts
Test voltage: 2000 volts
Minimum bending radius: 10 x Ø
Flexing temperature: -15º C to +70º C
Static temperature: -35º C to +70º C
Short circuit temperature: +160º C
Flame retardant: IEC 60332.3
Insulation resistance: 20 MΩ x km
CONSTRUCTION PARAMETER
CY LSZH Screened Cable is used as interconnecting cable for measuring, controlling or regulation in control equipment for assembly and production lines, conveyors and for computer units. Suitable for fixed installations or for flexible use when temporarily moved, and in conditions of medium mechanical stress. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment. Can be used outdoors when protected, and in dry or moist conditions indoors.
STANDARD
BS6500, VDE0250, IEC 60332-3, IEC 60754-1
CONSTRUCTION

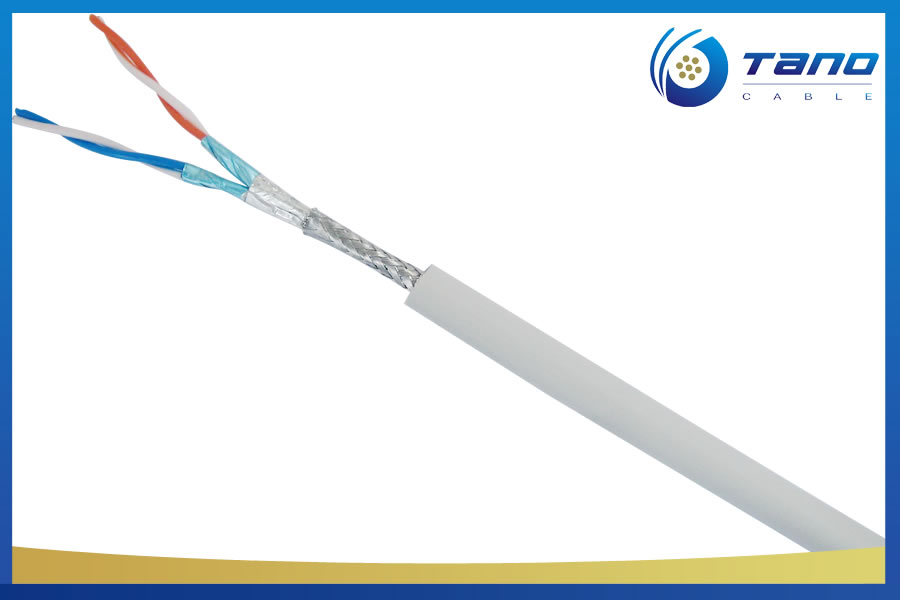

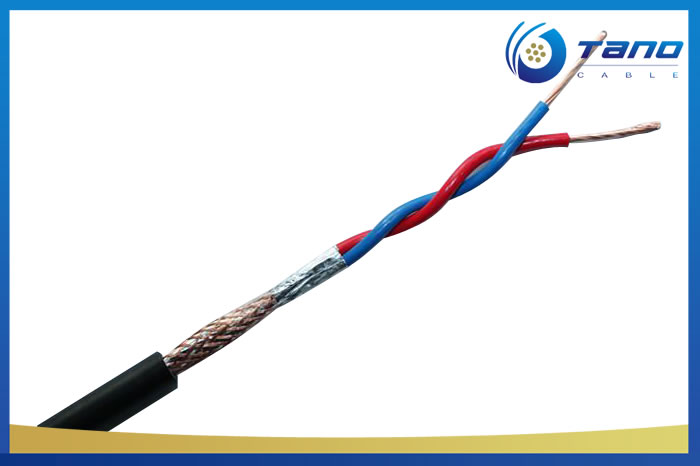

Plain copper conductor Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5 IEC 60228 cl.5 LSOH core insulation H12- DIN VDE 027 PT23 Color coded to VDE-0293-308 Green-yellow grounding (3 conductors and above) Plastic binder tape Tinned Copper Wire Braid Screen LSOH outer jacket
TECHNICAL DATA
Working voltage: 300/500 volts
Test voltage: 2000 volts
Minimum bending radius: 10 x Ø
Flexing temperature: -15º C to +70º C
Static temperature: -35º C to +70º C
Short circuit temperature: +160º C
Flame retardant: IEC 60332.3
Insulation resistance: 20 MΩ x km
CONSTRUCTION PARAMETER
| AWG | No. of Cores | |||
| x Nominal | Nominal | Nominal | Nominal | |
| Cross | Overall | Copper | Cable | |
| Sectional | Diameter | Weight | Weight | |
| Area | ||||
| No. xmm2 | mm | kg/km | kg/km | |
| 20(16/32) | 2 x0.5 | 7 | 35 | 80 |
| 20(16/32) | 3 x0.5 | 7.3 | 45.5 | 106 |
| 20(16/32) | 4 x0.5 | 7.9 | 55.2 | 123 |
| 20(16/32) | 5G0.5 | 8.4 | 66 | 134 |
| 20(16/32) | 7G0.5 | 9.9 | 80.5 | 160 |
| 20(16/32) | 12G0.5 | 11.3 | 138.5 | 237 |
| 18(24/32) | 2 x0.75 | 7.4 | 45 | 115 |
| 18(24/32) | 3 x0.75 | 7.9 | 57.9 | 125 |
| 18(24/32) | 4 x0.75 | 8.4 | 64 | 141 |
| 18(24/32) | 5 x0.75 | 8.9 | 77.4 | 162 |
| 18(24/32) | 7 x0.75 | 10.6 | 102 | 187 |
| 18(24/32) | 12G0.75 | 12.3 | 177 | 313 |
| 18(24/32) | 18G0.75 | 14.5 | 243 | 456 |
| 18(24/32) | 25G0.75 | 16.6 | 307.3 | 575 |
| 17(32/32) | 2 x1.0 | 7.9 | 50 | 127 |
| 17(32/32) | 3 x1.0 | 8.2 | 65.3 | 140 |
| 17(32/32) | 4 x1.0 | 8.7 | 78.1 | 160 |
| 17(32/32) | 5G1.0 | 9.5 | 89.4 | 182 |
| 17(32/32) | 7G1.0 | 10.8 | 113.6 | 215 |
| 17(32/32) | 12G1.0 | 13.3 | 188.1 | 352 |
| 17(32/32) | 18G1.0 | 15.5 | 286 | 514 |
| 17(32/32) | 25G1.0 | 17.5 | 388.5 | 677 |
| 17(32/32) | 41G1.0 | 22 | 578 | 1010 |
| 16(30/30) | 2 x1.5 | 8.5 | 77 | 172 |
| 16(30/30) | 3 x1.5 | 8.9 | 83 | 187 |
| 16(30/30) | 4G1.5 | 9.6 | 100 | 201 |
| 16(30/30) | 5G1.5 | 10.3 | 125 | 231 |
| 16(30/30) | 7G1.5 | 13.1 | 196 | 310 |
| 16(30/30) | 12G1.5 | 14.8 | 280 | 505 |
| 16(30/30) | 18G1.5 | 17.2 | 389 | 671 |
| 16(30/30) | 25G1.5 | 20.1 | 535 | 955 |
| 14(30/50) | 3G2.5 | 10.3 | 146 | 211 |
| 14(30/50) | 4G2.5 | 11.3 | 167 | 356 |
| 14(30/50) | 5G2.5 | 12.6 | 200.2 | 386 |
| 14(30/50) | 7G2.5 | 13.9 | 288 | 498 |
| 14(30/50) | 12G2.5 | 17.6 | 477.3 | 911 |
| 12(56/28) | 4G4 | 13.4 | 237 | 458 |
| 12(56/28) | 5G4 | 14.7 | 280 | 532 |
| 12(56/28) | 7G4 | 18.2 | 388 | 766 |
| 10(84/28) | 4G6 | 15.8 | 318 | 611 |
| 10(84/28) | 5G6 | 17.3 | 453 | 770 |
| 10(84/28) | 7G6 | 24.8 | 524.7 | 1035 |
| 8(80/26) | 4G10 | 24.4 | 558 | 986 |
| 6(128/26) | 4G16 | 24.4 | 558 | 986 |
| 4(200/26) | 4G25 | 32.9 | 1289 | 2028 |
| 2(280/26) | 4G35 | 36.8 | 1693 | 2649 |
| 1(400/26) | 4G50 | 42.4 | 2342 | 3741 |
| 2/0(356/24) | 4G70 | 49.4 | 3035 | 5054 |
| 3/0(485/24 | 4G95 | 54.5 | 4055 | 6427 |
