APPLICATION
ACSR conductors are widely used for electrical power transmission over long distances, since they are ideal for long overhead lines spans. They are also used as a messenger for supporting overhead electrical cables.

STANDARD
Basic design to BS EN 50182 standard.

CONSTRUCTION

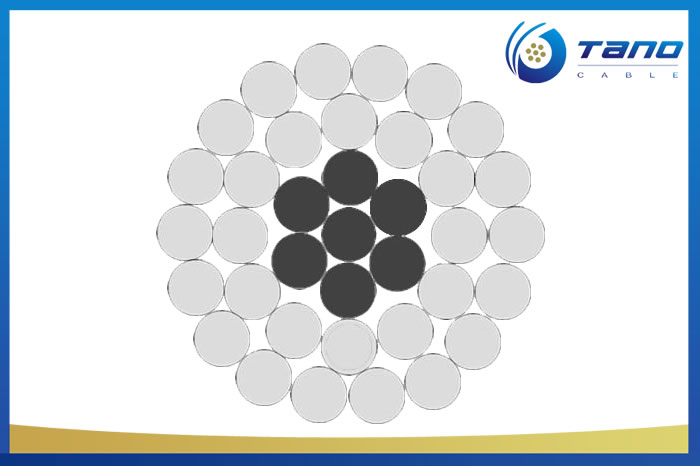

ACSR conductors are formed by several wires of aluminium and galvanized steel, stranded in concentric layers. The wire or wires which form the core, are made of galvanized steel and the external layer or layers, are of aluminium. Galvanized steel core consist normally of 1, 7 or 19 wires. The diameters of steel and aluminium wires can be the same, or different. By varying the relative proportions of aluminium and steel, the required characteristics for any particular application can be reached. A higher U. T. S. Can be obtained, by increasing steel content, and a higher current carrying capacity by increasing aluminium content.

ELECTRICAL PROPERTIES

Density@20ºC	Aluminum: 2.703 kg/dm
	Galvanized Steel: 7.80 kg/dm
Temperature Coefficient@20°C	Aluminum: 0.00403 (°C)
Resistivity@20°C	Aluminum: Should not exceed 0.028264
Linear Expansivity	Aluminum: 23 x10 (°C)
	Galvanized Steel: 11.5 x10 (1/°C)

SERVICE CONDITIONS

Ambient Temperature	-5°C - 50°C
Wind Pressure	80 – 130kg/m2
Seismic Acceleration	0.12 - 0.05g
Isokeraunic Level	10 – 18
Relative Humidity	5 – 100%

CONSTRUCTION PARAMETERS

Code	Stranding		Sectional Area			Overall	Weight	Breaking	Electrical	Current
						Diameter		Load	Resistance	Rating*
	AL	Steel	AL	Steel	Total				@20º
	No.×mm	No.×mm	mm2	mm2	mm2	mm	Kg/Km	KN	Ω/Km	A
Mole	6/1.50	1/1.50	10.6	1.77	12.4	4.5	42.8	4.14	2.7027	66
Squirrel	6/2.11	1/2.11	21	3.5	24.5	6.33	84.7	7.87	1.3659	101
Fox	6/2.79	1/2.79	36.7	6.11	42.8	8.37	148.1	13.21	0.7812	142
Mink	6/3.66	1/3.66	63.1	10.5	73.6	10.98	254.9	21.67	0.454	199
Skunk	12/2.59	7/2.59	63.2	36.9	100.1	12.95	463	52.79	0.4568	206
Beaver	6/3.99	1/3.99	75	12.5	87.5	11.97	302.9	25.76	0.382	221
Racoon	6/4.09	1/4.09	78.8	13.1	91.9	12.27	318.3	27.06	0.3635	228
Otter	6/4.22	1/4.22	83.9	14	97.9	12.66	338.8	28.81	0.3415	237
Cat	6/4.50	1/4.50	95.4	15.9	111.3	13.5	385.3	32.76	0.3003	256
Hare	6/4.72	1/4.72	105	17.5	122.5	14.16	423.8	36.04	0.273	271
Coyote	26/2.54	7/1.91	131.7	20.1	151.8	15.89	520.7	45.86	0.2192	311
Cougar	18/3.05	1/3.05	131.5	7.31	138.8	15.25	418.8	29.74	0.2188	308
Tiger	30/2.36	7/2.36	131.2	30.6	161.8	16.52	602.2	57.87	0.2202	313
Lion	30/3.18	7/3.18	238.3	55.6	293.9	22.26	1093.4	100.47	0.1213	450
Bear	30/3.35	7/3.35	264.4	61.7	326.1	23.45	1213.4	111.5	0.1093	480
Goat	30/3.71	7/3.71	324.3	75.7	400	25.97	1488.2	135.13	0.0891	543
Sheep	30/3.99	7/3.99	375.1	87.5	462.6	27.93	1721.3	156.3	0.0771	592
Antelope	54/2.97	7/2.97	374.1	48.5	422.6	26.73	1413.8	118.88	0.0773	586
Bison	54/3.00	7/3.00	381.7	49.5	431.2	27	1442.5	121.3	0.0758	593
Deer	30/4.27	7/4.27	429.6	100.2	529.8	29.89	1971.4	179	0.0673	643
Elk	30/4.50	7/4.50	477.1	111.3	588.4	31.5	2189.5	198.8	0.0606	684
Camel	54/3.35	7/3.35	476	61.7	537.7	30.15	1798.8	146.4	0.0608	677
Moose	54/3.53	7/3.53	528.5	68.5	597	31.77	1997.3	159.92	0.0547	720

(*) Note: The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.

TECHNICAL DATA

Numbers of Wires		Final Modules of Elasticity		Coefficient of Linear Expansion
Al	Steel	Kg/mm2	lb/in2	1/Cº	1/Fº
6	1	81	11.5 x106	19.1 x10-6	10.6 x10-6
6	7	77	11.0 x106	19.8 x10-6	11.0 x10-6
12	7	107	15.2 x106	15.3 x10-6	8.5 x10-6
18	1	67	9.5 x106	21.2 x10-6	11.8 x10-6
24	7	74	10.5 x106	19.6 x10-6	10.9 x10-6
26	7	77	10.9 x106	18.9 x10-6	10.5 x10-6
28	7	79	11.2 x106	18.4 x10-6	10.2 x10-6
30	7	82	11.6 x106	17.8 x10-6	9.9 x10-6
30	19	80	11.4 x106	18.0 x10-6	10.0 x10-6
32	19	82	11.7 x106	17.5 x10-6	9.7 x10-6
54	7	70	9.9 x106	19.3 x10-6	10.7 x10-6
54	19	68	9.7 x106	19.4 x10-6	10.8 x10-6
