H07BN4-F EPR Flexible Rubber insulated Cables are made with synthetic rubbers having an excellent temperature resistance and can be used either in dry, humid or wet places or in contact with oil or grease, in weather conditions and under medium mechanical stress, for example power supply to equipment in industrial plants, large size boilers, heating plates, portable lamps, electrical tools such as drilling machines, disk saws, portable engines and machines, building and farming equipments etc. H07BN4-F EPR Flexible Rubber insulated Cables are also suitable for stationary equipments, for example designed for wind-tower application, the particular conductor Cable Construction and the used materials have improved the cable torsion resistance (max 150°/m), key requirement for drop cables in wind-generators, on plaster in temporary buildings and builders huts, and wiring in machinery elevators or similar. Suitable for caravans and camping equipment. Especially recommended for service temperature up to 90ºC together with good resistance to hot grease and oil. Therefore these cables are ideal for use in plants and industries dealing with grease, oil or oil emulsion treatments, transformation or handling.

STANDARD

H07BN4-F EPR Flexible Rubber insulated Cables are designed according to CENELEC HD 22.12 S1, VDE-0282 Part-12, IEC 60245-4, IEC 60754-1/2, ROHS compliant.

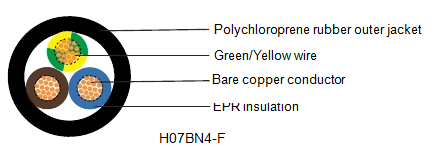

CONSTRUCTION

Fine bare copper strands

Strands to VDE-0295 Class-5, IEC 60228 Class-5

EPR(Ethylene Propylene Rubber) rubber EI7 insulation

Color code VDE-0293-308

Special polychloroprene rubber outer jacket EM7

TECHNICAL CHARACTERISTICS

Working voltage: 450/750 volts

Test voltage: 2500 volts

Flexing bending radius: 6.0 x Ø

Fixed bending radius: 4.0 x Ø

Temperature range: -40º C to +90º C

Wind energy: -15º C to +90º C

Maximum Short Circuit Temperature: +250º C

Flame retardant: IEC 60332.1C2/NF C 32-070

Insulation resistance: 20 MΩ x km
