APPLICATION of EPR Rubber Insulation Flexible H05BN4-F
EPR Rubber Insulation Flexible H05BN4-F cables can be used either in dry, humid or wet places or in contact with oil or grease, in weather conditions and under weak mechanical stress, for example for power supply to small appliances in industrial plants, machine shops, heating plates, portable lamps, farming equipment etc. They are also suitable for caravans and camping equipment... The maximum conductor temperature in normal use: 90°C. While high temperature use, skin contact must be avoided
STANDARD of EPR Rubber Insulation Flexible H05BN4-F
CENELEC HD 22.12 S1, VDE 0282 Part-12, IEC 60245-4, CE Low-Voltage, ROHS compliant.

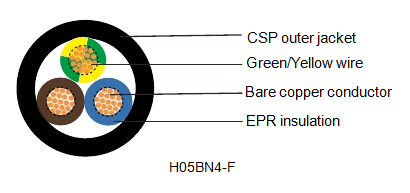

CONSTRUCTION of EPR Rubber Insulation Flexible H05BN4-F
Fine bare copper strands
Strands to VDE-0295 Class-5, IEC 60228 Class-5
EPR(Ethylene Propylene Rubber) rubber EI7 insulation
Color code VDE-0293-308
CSP(Chlorosulphonated Polyethylene) outer jacket EM7
TECHNICAL CHARACTERISTICS of EPR Rubber Insulation Flexible H05BN4-F
Working voltage: 300/500 volts
Test voltage: 2000 volts
Flexing bending radius: 6.0 x Ø
Fixed bending radius: 4.0 x Ø
Temperature Range: -20º C to +90º C
Maximum Short Circuit Temperature: +250º C
Flame retardant: IEC 60332.1
Insulation resistance: 20 MΩ x km
TECHNICAL PARAMETER of EPR Rubber Insulation Flexible H05BN4-F
|
AWG |
No. of Cores x |
Nominal |
Nominal |
Nominal Overall |
Nominal |
Nominal |
|
Nominal Cross |
Thickness |
Thickness |
Diameter |
Copper |
Weight |
|
|
Sectional Area |
of Insulation |
of Sheath |
mm |
Weight |
|
|
|
No. x mm² |
mm |
mm |
|
kg/km |
kg/km |
|
|
18(24/32) |
2 x 0.75 |
0.6 |
0.8 |
6.1 |
29 |
54 |
|
18(24/32) |
3 x 0.75 |
0.6 |
0.9 |
6.7 |
43 |
68 |
|
18(24/32) |
4 x 0.75 |
0.6 |
0.9 |
7.3 |
58 |
82 |
|
18(24/32) |
5 x 0.75 |
0.6 |
1 |
8.1 |
72 |
108 |
|
17(32/32) |
2x1 |
0.6 |
0.9 |
6.6 |
19 |
65 |
|
17(32/32) |
3x1 |
0.6 |
0.9 |
7 |
29 |
78 |
|
17(32/32) |
4x1 |
0.6 |
0.9 |
7.6 |
38 |
95 |
|
17(32/32) |
5x1 |
0.6 |
1 |
8.5 |
51 |
125 |
