APPLICATION of H05RN-F / H05RNH2-F Harmonized Rubber Insulation Cable
H05RN-F / H05RNH2-F Harmonized Rubber Insulation Cables are flexible, mainly recommended for use in electrical equipment under low stress in dry, damp and wet areas in indoor or outdoor environments. H05RN-F / H05RNH2-F Harmonized Rubber Insulation cable are commonly used for connection of electrical appliances when exposed to low mechanical strain in household, offices and for light utilities. Anywhere where there is minimal physical damage. Also suitable for fixed installation in furniture, decorative coverings, wall partitions and pre-fabricated building parts. Max operating voltage in single or three phase system is Uo/U 318/550 volts. In a direct current system max operating voltage is Uo/U 413/825 volts. They are ozone resistant, oil & fat resistant.
STANDARD of H05RN-F / H05RNH2-F Harmonized Rubber Insulation Cable
HD22.4 S3, VDE-0282 Part-4, CE low voltage directive 73/23/EEC & 93/68/EEC., IEC 60245-4, ROHS compliant
CONSTRUCTION of H05RN-F / H05RNH2-F Harmonized Rubber Insulation Cable

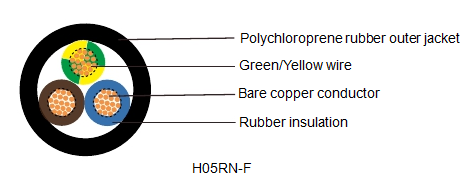

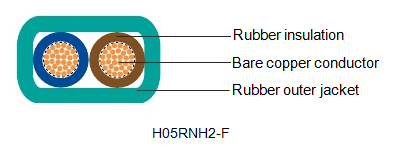

Fine bare copper strands
Strands to VDE-0295 Class-5, IEC 60228 Class-5
Rubber core insulation EI4 to VDE-0282 Part-1
Color code VDE-0293-308
Green-yellow grounding, 3 conductors and above
Polychloroprene rubber (neoprene) jacket EM2
TECHNICAL CHARACTERISTICS of H05RN-F / H05RNH2-F Harmonized Rubber Insulation Cable
Working voltage: 300/500 volts
Test voltage: 2000 volts
Flexing bending radius: 7.5 x Ø
Fixed bending radius: 4.0 x Ø
Temperature Range: -30º C to +60º C
Short circuit temperature: +200 º C
Flame retardant: IEC 60332.1
Insulation resistance: 20 MΩ x km
TECHNICAL PARAMETER of H05RN-F / H05RNH2-F Harmonized Rubber Insulation Cable
|
AWG |
No. of Cores x |
Nominal |
Nominal |
Nominal Overall |
Nominal |
Nominal |
|
Nominal Cross |
Thickness |
Thickness |
Diameter |
Copper |
Weight |
|
|
Sectional Area |
of Insulation |
of Sheath |
mm (min-max) |
Weight |
||
|
No. x mm² |
mm |
mm |
kg/km |
kg/km |
||
|
H05RN-F |
||||||
|
18(24/32) |
2 x 0.75 |
0.6 |
0.8 |
5.7 - 7.4 |
14.4 |
80 |
|
18(24/32) |
3 x 0.75 |
0.6 |
0.9 |
6.2 - 8.1 |
21.6 |
95 |
|
18(24/32) |
4 x 0.75 |
0.6 |
0.9 |
6.8 - 8.8 |
30 |
105 |
|
17(32/32) |
2x1 |
0.6 |
0.9 |
6.1 - 8.0 |
19 |
95 |
|
17(32/32) |
3x1 |
0.6 |
0.9 |
6.5 - 8.5 |
29 |
115 |
|
17(32/32) |
4x1 |
0.6 |
0.9 |
7.1 – 9.2 |
38 |
142 |
|
16(30/30) |
3 x 1.5 |
0.8 |
1 |
8.6 - 11.0 |
29 |
105 |
|
16(30/30) |
4 x 1.5 |
0.8 |
1.1 |
9.5 - 12.2 |
39 |
129 |
|
16(30/30) |
5 x 1.5 |
0.8 |
1.1 |
10.5 - 13.5 |
48 |
153 |
|
H05RNH2-F |
||||||
|
16(30/30) |
2 x 1.5 |
0.6 |
0.8 |
5.25±0.15x13.50±0.30 |
14.4 |
80 |
|
14(50/30) |
2 x 2.5 |
0.6 |
0.9 |
5.25±0.15x13.50±0.30 |
21.6 |
95 |
