APPLICATION of H03RT-H Rubber Cable
H03RT-H Rubber Cables are suitable for power connecting wire and complete lines between indoor household appliances, generally used for electric iron or electric saucepan. Not suitable for outdoor use nor power supply to electrical tools. Ozone, oxygen, UV rays and heat resistant.
STANDARD of H03RT-H Rubber Cable
HD 22.14, DIN VDE 0282-14, ROHS compliant.

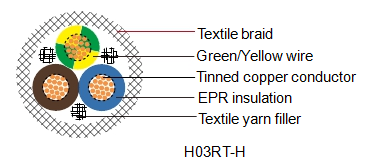

CONSTRUCTION of H03RT-H Rubber Cable
Flexible bare or tinned copper strand conductor acc. to DIN VDE 0295 class 5. IEC 60228 class 5
EPR insulation type E14 of HD22.1
Color coded to VDE 0293-308/HD 308(3 conductors and above with yellow/green wire)
Textile yarn filler
Textile braid of HD22.1
TECHNICAL CHARACTERISTICS of H03RT-H Rubber Cable
Working voltage: 300/300 V
Test voltage: 2000V
Minimum bending radius: 10× cable diameter
Temperature range: - 25℃ to + 60℃
Short circuit temperature: 200℃
TECHNICAL PARAMETER of H03RT-H Rubber Cable
|
AWG |
No. of Cores x |
Nominal |
Nominal Overall |
Nominal |
|
Nominal Cross |
Thickness |
Diameter |
Weight |
|
|
Sectional Area |
of Insulation |
|
|
|
|
No. x mm² |
mm |
mm |
kg/km |
|
|
18(24/32) |
2×0.75 |
0.8 |
6.30±0.20 |
36 |
|
17(32/32) |
2×1.0 |
0.8 |
6.80±0.20 |
52 |
|
16(30/30) |
2×1.5 |
0.8 |
7.20±0.20 |
42 |
|
18(24/32) |
3×0.75 |
0.8 |
6.80±0.20 |
60 |
|
17(32/32) |
3×1.0 |
0.8 |
7.20±0.20 |
54 |
|
16(30/30) |
3×1.5 |
0.8 |
7.80±0.20 |
74 |
