APPLICATION
For general use in domestic premises, kitchens and offices and for supplying appliances where the H05GG-F Harmonized Standard EPR Cables are subjected to low mechanical stresses. Also for low temperature uses.(eg., cooking appliances, soldering irons, toasters).
STANDARD
H05GG-F Harmonized Standard EPR Cables are designed according to HD 22.11 S1, VDE 0282 part 11

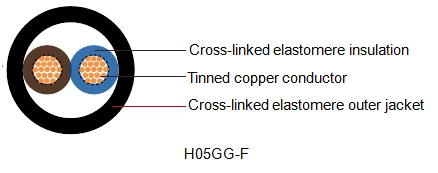

CONSTRUCTION
Fine tinned copper strands
Strands to VDE-0295 Class-5, IEC 60228 Cl-5
Cross-linked elastomere E13 insulation
Color code VDE-0293-308
Cross-linked elastomere EM 9 outer jacket – black
TECHNICAL CHARACTERISTICS
Working voltage: 300/500V
Test voltage: 2000V
Flexing bending radius: 4×Ø
Static bending radius: 3×Ø
Temperature range: -15°C to +110°C
Short circuit temperature: 200°C
Flame retardant: IEC 60332 -1
Halogen-free: IEC 60754-1
Low smoke: IEC 60754-2
Smoke density: IEC 61034
