APPLICATION
XLPE-OS-LSOH Instrument Cable are generally use for indoor installation and suitable for wet and damp areas. Generally used within industrial process manufacturing plants for communication, data and voice transmission signals and services, also used for the interconnection of electrical equipment and instruments, the LSOH sheath can reduce toxic smoke and fume emission.

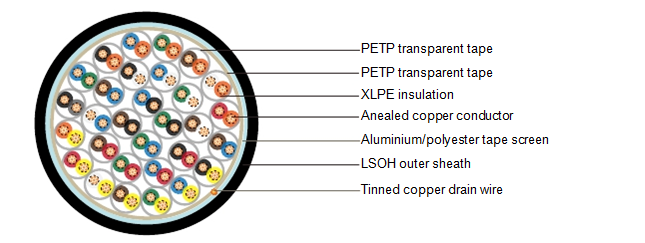

CONSTRUCTION
|
Conductor |
Annealed or tinned copper, sizes: 0.5mm² and 0.75mm² multi stranded(Class 5), 0.5 mm², 1.0 mm² solid(Class 1), 1.5mm² or 2.5mm², multi stranded(Class 2) to BS6360 |
|
Insulation |
XLPE (Cross Linked Polyethylene), or PE (optional) |
|
Pairing |
Two insulated conductors uniformly twisted together with a lay not exceeding 100mm |
|
Color code |
Refer to technical information |
|
Binder tape |
PETP transparent tape |
|
Collective screen |
Aluminum/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm² |
|
Outer sheath |
LSOH(Low Smoke Zero Halogen) sheath Flame retardant to IEC60332-3-22 Halogen free to IEC60754-1 Low smoke emission to IEC61034-1-2 |
|
Sheath color |
Black or blue |
MECHANICAL AND ELECTRICAL PROPERTIES
Operating temperature: -20˚C up to + 90˚C (fixed installation)
0˚C to +50˚C (during operation)
Minimum bending radius: 5 x OD
|
Conductor Area Size |
mm 2 |
0.5 |
0.5 |
0.75 |
1 |
1.5 |
|
|
Conductor Stranding |
No. x mm |
1 x 0.8 |
16 x 0.2 |
24 x 0.2 |
1 x 1.13 |
7 x 0.53 |
|
|
Conductor Resistance Max |
ohm/km |
36.8 |
39.7 |
26.5 |
18.2 |
12.3 |
|
|
Insulation Resistance Min |
Gohm/km |
5 |
5 |
5 |
5 |
5 |
|
|
Capacitance Unbalance at 1kHz(pair to pair screen) |
pF/250m |
250 |
|||||
|
Max. Mutual Capacitance @ 1kHz for Non OS or OS cables (except one-pair and two- pairs) |
pF/m |
115 |
115 |
115 |
115 |
115 |
|
|
Max. Mutual Capacitance @1 kHz IS/OS cables (include 1 pair and 2 pair) |
pF/m |
75 |
75 |
75 |
75 |
75 |
|
|
Max. L/R Ratio for adjacent cores(Inductance/Resistance) |
μH/ohm |
25 |
25 |
25 |
25 |
40 |
|
|
|
Core to core |
V |
1000 |
1000 |
1000 |
1000 |
1000 |
|
Test voltage |
Core to Screen |
V |
1000 |
1000 |
1000 |
1000 |
1000 |
|
Rated Voltage max |
V |
300/500 |
300/500 |
300/500 |
300/500 |
300/500 |
|
