APPLICATION
The unarmored versions instrumentation cable to BS standard (Part 1 Type 1) are generally use for indoor installation and suitable for wet and damp areas. Instrumentation cable to BS standard is generally used within industrial process manufacturing plants for communication, data and voice transmission signals and services, Also used for the interconnection of electrical equipment and instruments, typically in petroleum industry.
CONSTRUCTION
MECHANICAL AND ELECTRICAL PROPERTIES
Operating temperature: -40˚C up to + 70˚C (fixed installation) 0˚C to +50˚C (during operation)
Minimum bending radius: 5 x OD
OUR CUSTOMER
OUR FACTORY
PACKING AND DELIVERY
The unarmored versions instrumentation cable to BS standard (Part 1 Type 1) are generally use for indoor installation and suitable for wet and damp areas. Instrumentation cable to BS standard is generally used within industrial process manufacturing plants for communication, data and voice transmission signals and services, Also used for the interconnection of electrical equipment and instruments, typically in petroleum industry.

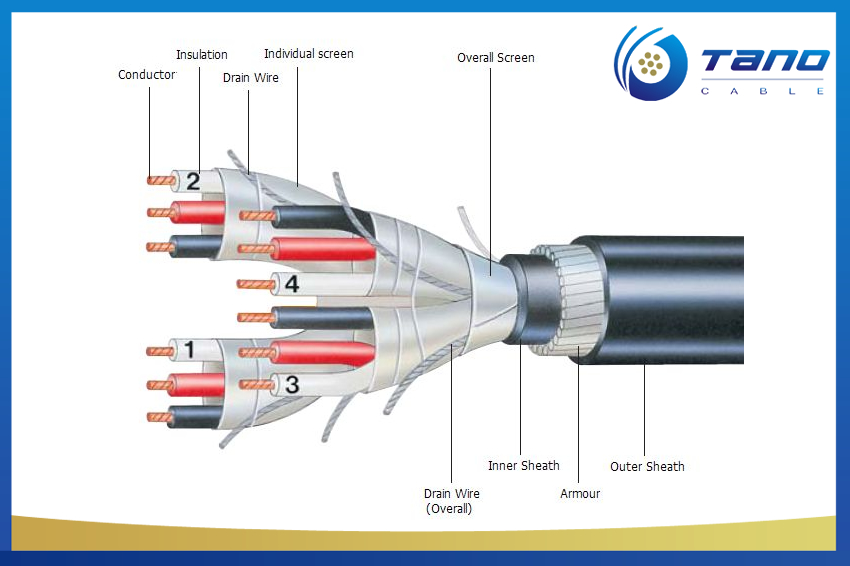

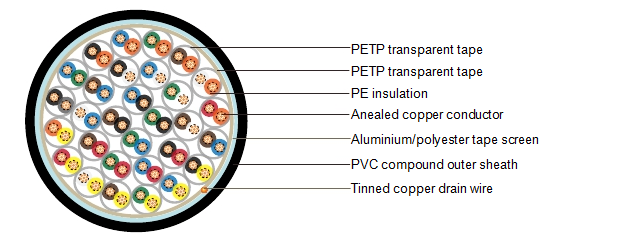

CONSTRUCTION
| Conductor | Annealed or tinned copper, sizes: 0.5mm² and 0.75mm² multi-stranded(Class 5), 0.5 mm², 1.0 mm² solid(Class 1), 1.5mm² or 2.5mm², multi-stranded(Class 2) to BS6360 |
| Insulation | PE (Polyethylene) type 03 to BS6234 |
| Pairing | Two insulated conductors uniformly twisted together with a lay not exceeding 100mm |
| Color code | Refer to technical information |
| Binder tape | PETP transparent tape |
| Collective screen | Aluminum/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm² |
| Outer sheath | PVC Sheath, type TM 1 or type 6 to BS 6746 |
| Sheath color | Black or blue |
MECHANICAL AND ELECTRICAL PROPERTIES
Operating temperature: -40˚C up to + 70˚C (fixed installation) 0˚C to +50˚C (during operation)
Minimum bending radius: 5 x OD
