APPLICATION
PVC-IS-OS-SWA-PVC Instrumentation Cable are generally used when the risk of mechanical damage is increased. The galvanized steel wire armor provides excellent protection. Generally PVC-IS-OS-SWA-PVC Instrumentation Cable is used within industrial process manufacturing plants for communication, data and voice transmission signals and services, Also used for the interconnection of electrical equipment and instruments, typically in chemical or petrochemical industry. The PVC-IS-OS-SWA-PVC Instrumentation Cable are generally use for outdoor installation for direct burial or installed in the duct and suitable for wet and damp areas.

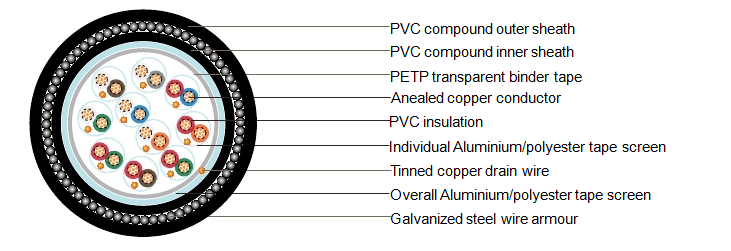

CONSTRUCTION
.png)
|
Conductor |
Annealed or tinned copper, sizes: 0.5mm² and 0.75mm² mulitistranded(Class5), 1.5mm² multistranded(Class 2) to BS6360 |
|
Insulation |
PVC (polyvinyl chloride),type TI1 to BS 6746 |
|
Pairing |
Two insulated conductors uniformly twisted together with a lay not exceeding100mm |
|
Colour code |
Multipair cables:See technical information |
|
Individual screen |
Aluminium/polyester tape is applied over each pair metallic side down in contact with tinned copper drain wire, 0.5mm² |
|
Binder tape |
PETP transparent tape |
|
Collective screen |
Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm² |
|
Inner Sheath |
PVC (polyvinyl chloride), type TM 1 to BS 6746 |
|
Amour |
Galvanized steel wire armour |
|
Outer sheath |
PVC Sheath, type TM 1 or type 6 to BS 6746 |
|
Sheath colour |
Black or blue |
MECHANICAL AND ELECTRICAL PROPERTIES
Operating temperature: -40˚C up to + 70˚C (fixed installation)
0˚C to +50˚C (during operation)
Minimum bending radius: 6 x OD
OUR FACTORY

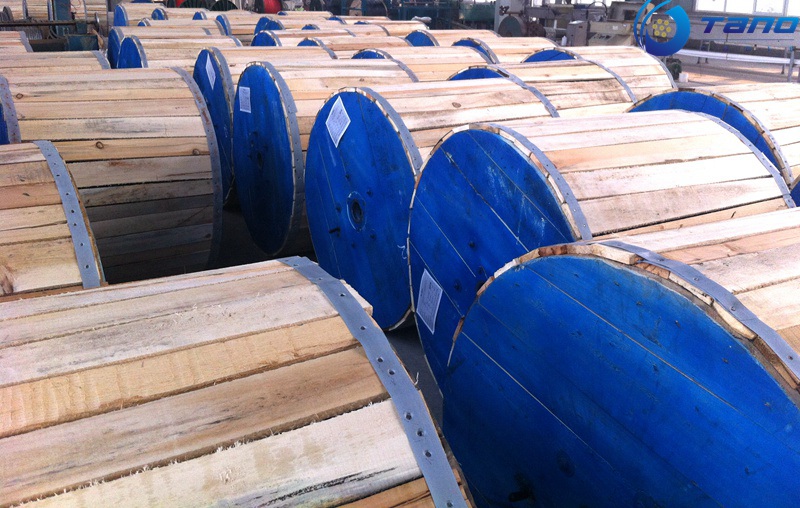

PACKING AND DELIVERY
.jpg)
