APPLICATION
YY Control Push PVC Cable is used as connecting cable, as measuring, checking and control cable in machine tool manufacturing, plant engineering and on assembly lines and production lines to meet stringent safety requirements. YY Control Push PVC Cable is suitable for fixed installation or flexible applications with unrestricted mobility without forced movement control and without exposure to tensile load installation in dry and moist rooms; outdoor installation not permitted.
STANDARD
YY Control Push PVC Cable is generally to BS6500, VDE0250

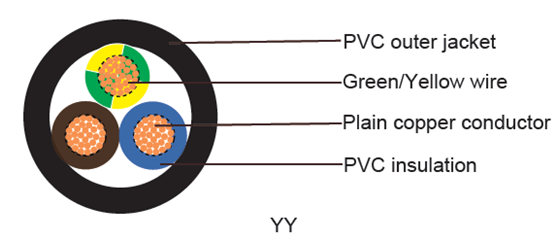

CONSTRUCTION
Plain copper conductor
Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5
PVC core insulation type Y12
Color coded to VDE-0293-308
Green-yellow grounding (3 conductors and above)
PVC outer jacket type YM2
TECHNICAL DATA
Working voltage: 300/500 volts
Test voltage: 3000 volts
Minimum bending radius: 10 x Ø
Flexing temperature: -5º C to +70º C
Static temperature: -35º C to +70º C
Flame retardant: IEC 60332.1
Insulation resistance: 20 MΩ x km
OUR CUSTOMERS
OUR FACTORY

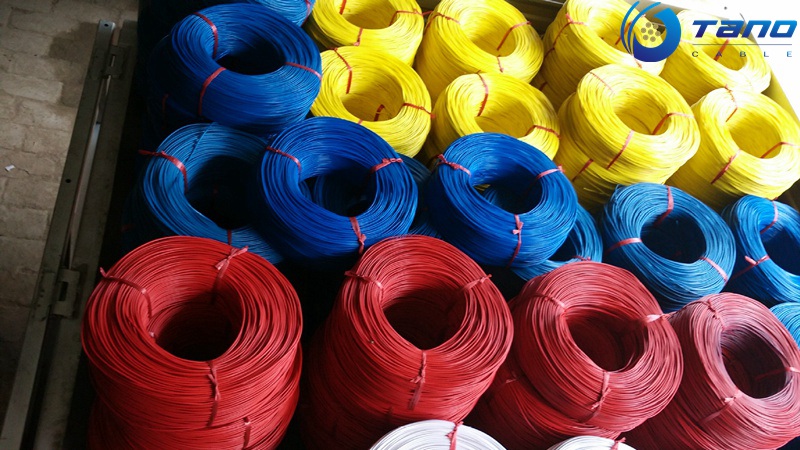

PACKING AND DELIVERY
