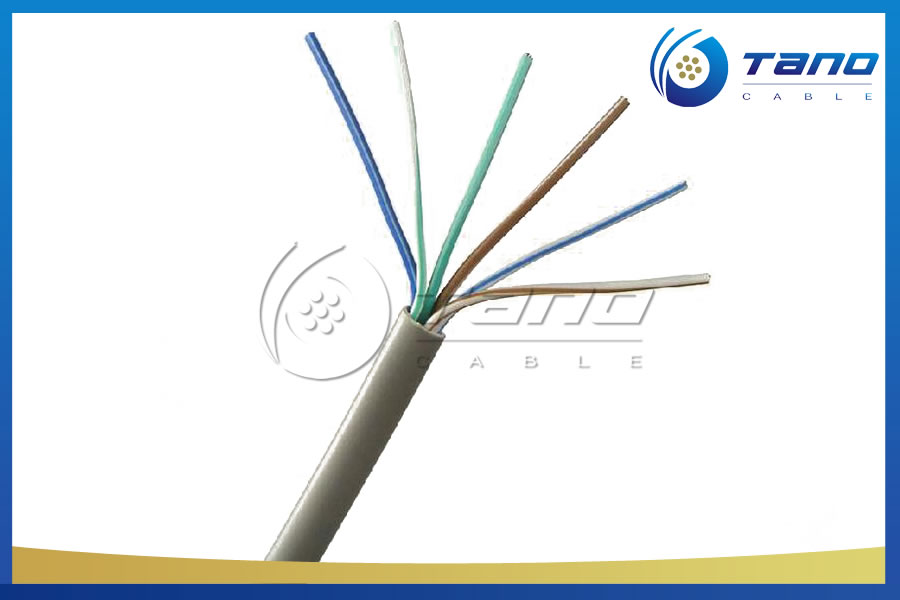

APPLICATION of Push Pull Control Cable YY LSZH PVC Insulation
Push Pull Control Cable YY LSZH PVC Insulation is suitable for electrical installations in dry and damp interiors and outdoors if UV protection and temperature ranges are observed. Push Pull Control Cable YY LSZH PVC Insulation is suitable as a measurement, sensing and control cable in the machine tool manufacturing, engineering, power stations, heating and air conditioning installations, refrigeration and data processing installations. Can be used outdoors when protected, and in dry or moist conditions indoors.
STANDARD of Push Pull Control Cable YY LSZH PVC Insulation
BS6500, VDE0250, IEC 60332-3, IEC 60754-1

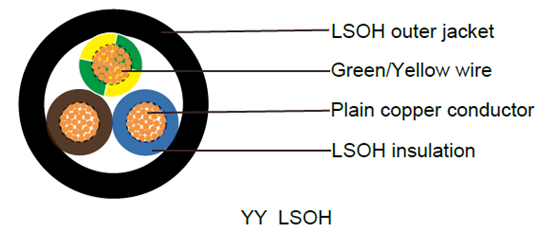

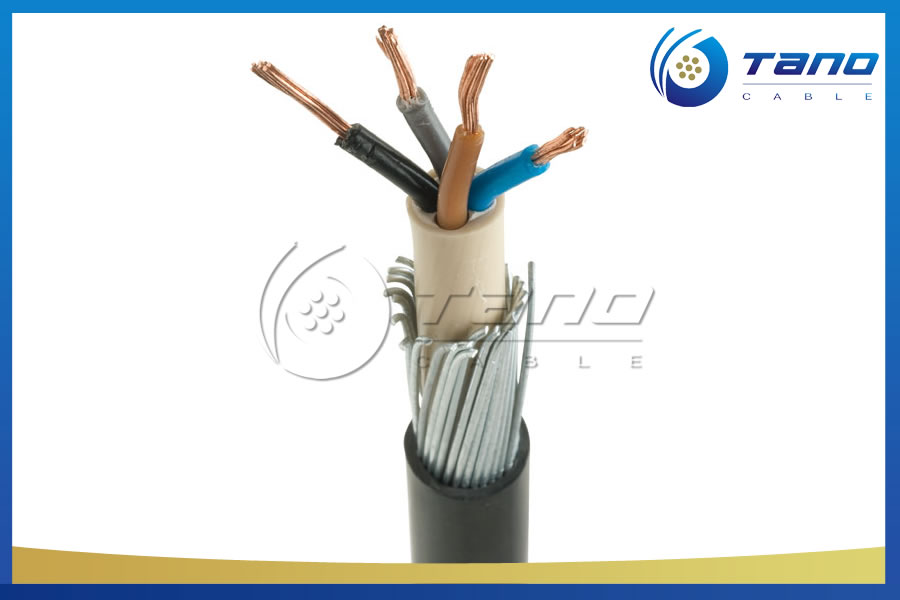

CONSTRUCTION of Push Pull Control Cable YY LSZH PVC Insulation
Plain copper conductor
Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5
LSOH core insulation
Color coded to VDE-0293-308
Green-yellow grounding (3 conductors and above)
LSOH outer jacket
TECHNICAL DATA of Push Pull Control Cable YY LSZH PVC Insulation
Working voltage: 300/500 volts
Test voltage: 3000 volts
Minimum bending radius: 10 x Ø
Flexing temperature: -5º C to +85º C
Static temperature: -35º C to +85º C
Short circuit temperature: +160º C
Flame retardant: IEC 60332.3
Insulation resistance: 20 MΩ x km
CONSTRUCTION PARAMETER of Push Pull Control Cable YY LSZH PVC Insulation
|
AWG |
No. of Cores x Nominal Cross Sectional Area |
Nominal Overall Diameter |
Nominal Copper Weight |
Nominal Cable Weight |
|
No. x mm² |
mm |
kg/km |
kg/km |
|
|
20(16/32) |
2 x 0.5 |
4.8 |
9.6 |
40 |
|
20(16/32) |
3 x 0.5 |
5.1 |
14.4 |
47 |
|
20(16/32) |
4 x 0.5 |
5.7 |
19.2 |
57 |
|
20(16/32) |
5 x 0.5 |
6.2 |
24 |
66 |
|
20(16/32) |
7 x 0.5 |
7.1 |
33.6 |
85 |
|
20(16/32) |
12 x 0.5 |
8.9 |
58 |
133 |
|
18(24/32) |
2 x 0.75 |
5.4 |
14.4 |
50 |
|
18(24/32) |
3 x 0.75 |
5.7 |
21.6 |
60 |
|
18(24/32) |
4 x 0.75 |
6.2 |
28.8 |
73 |
|
18(24/32) |
5 x 0.75 |
6.7 |
36 |
88 |
|
18(24/32) |
7 x 0.75 |
7.7 |
50 |
109 |
|
18(24/32) |
9 x 0.75 |
9.4 |
65 |
162 |
|
18(24/32) |
12 x 0.75 |
9.9 |
86 |
190 |
|
18(24/32) |
18 x 0.75 |
11.7 |
130 |
268 |
|
18(24/32) |
25 x 0.75 |
13.8 |
180 |
374 |
|
17(32/32) |
2 x 1.0 |
5.7 |
19.2 |
57 |
|
17(32/32) |
3 x 1.0 |
6 |
28.8 |
73 |
|
17(32/32) |
4 x 1.0 |
6.5 |
38.4 |
85 |
|
17(32/32) |
5 x 1.0 |
7.1 |
48 |
105 |
|
17(32/32) |
7 x 1.0 |
8.3 |
67 |
131 |
|
17(32/32) |
8 x 1.0 |
9.5 |
77 |
146 |
|
17(32/32) |
12 x 1.0 |
10.5 |
115 |
220 |
|
17(32/32) |
14 x 1.0 |
11.2 |
134 |
249 |
|
17(32/32) |
18 x 1.0 |
12.7 |
173 |
315 |
|
17(32/32) |
25 x 1.0 |
14.7 |
240 |
449 |
|
17(32/32) |
41 x 1.0 |
18.8 |
394 |
698 |
|
16(30/30) |
2 x 1.5 |
6.3 |
29 |
77 |
|
16(30/30) |
3 x 1.5 |
6.7 |
43 |
95 |
|
16(30/30) |
4 x 1.5 |
7.2 |
58 |
117 |
|
16(30/30) |
5 x 1.5 |
8.1 |
72 |
144 |
|
16(30/30) |
7 x 1.5 |
9.9 |
101 |
183 |
|
16(30/30) |
8 x 1.5 |
10.6 |
115 |
205 |
|
16(30/30) |
9 x 1.5 |
11.4 |
130 |
220 |
|
16(30/30) |
12 x 1.5 |
12 |
173 |
307 |
|
16(30/30) |
14 x 1.5 |
12.6 |
202 |
349 |
|
16(30/30) |
18 x 1.5 |
14.4 |
259 |
465 |
|
16(30/30) |
25 x 1.5 |
16.9 |
360 |
655 |
|
16(30/30) |
34 x 1.5 |
22 |
490 |
945 |
|
14(30/50) |
2 x 2.5 |
7.5 |
48 |
123 |
|
14(30/50) |
3 x 2.5 |
8.1 |
72 |
152 |
|
14(30/50) |
4 x 2.5 |
8.9 |
96 |
192 |
|
14(30/50) |
5 x 2.5 |
10 |
120 |
243 |
|
14(30/50) |
7 x 2.5 |
12.3 |
168 |
310 |
|
14(30/50) |
12 x 2.5 |
14.8 |
288 |
524 |
|
12(56/28) |
4x4 |
10.8 |
154 |
299 |
|
12(56/28) |
5x4 |
12.1 |
192 |
363 |
|
12(56/28) |
7x4 |
14.9 |
269 |
488 |
|
10(84/28) |
4x6 |
13 |
230 |
480 |
|
10(84/28) |
5x6 |
14.1 |
288 |
583 |
|
10(84/28) |
7x6 |
17.5 |
404 |
782 |
