APPLICATION

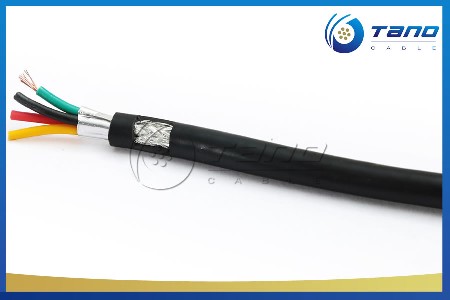

CY Screened control cable can be used as connecting cable, as measuring, signaling and control cable in machine tool manufacturing, plant engineering and in assembly and production lines to meet stringent safety requirements. CY Screened control cable is suitable for fixed installations or flexible applications with unrestricted mobility without forced movement control and without exposure to tensile load. Installation in dry and moist rooms; outdoor installation not permitted. These cables with copper screening are ideally suitable for interference-free data and signal transmission in measuring and control technology.

CY Screened control cable is designed according to BS6500, VDE0250

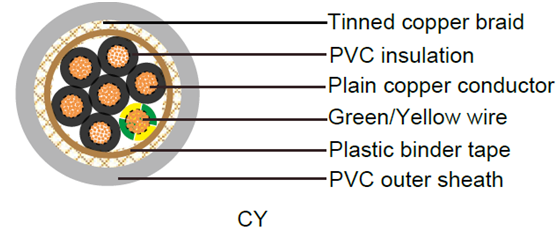

Plain copper conductor

Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5 IEC 60228 cl.5

PVC core insulation type Y12

Color coded to VDE-0293-308

Green-yellow grounding (3 conductors and above)

Plastic binder tape

Tinned Copper Wire Braid Screen

PVC outer jacket type Y12

TECHNICAL DATA of CY Screened Control Cable VDE Standard

Working voltage: 300/500 volts

Test voltage: 2000 volts

Minimum bending radius: 10 x Ø

Flexing temperature: -15º C to +70º C

Static temperature: -35º C to +70º C

Short circuit temperature: +160º C

Flame retardant: IEC 60332.3

Insulation resistance: 20 MΩ x km

OUR CUSTOMERS

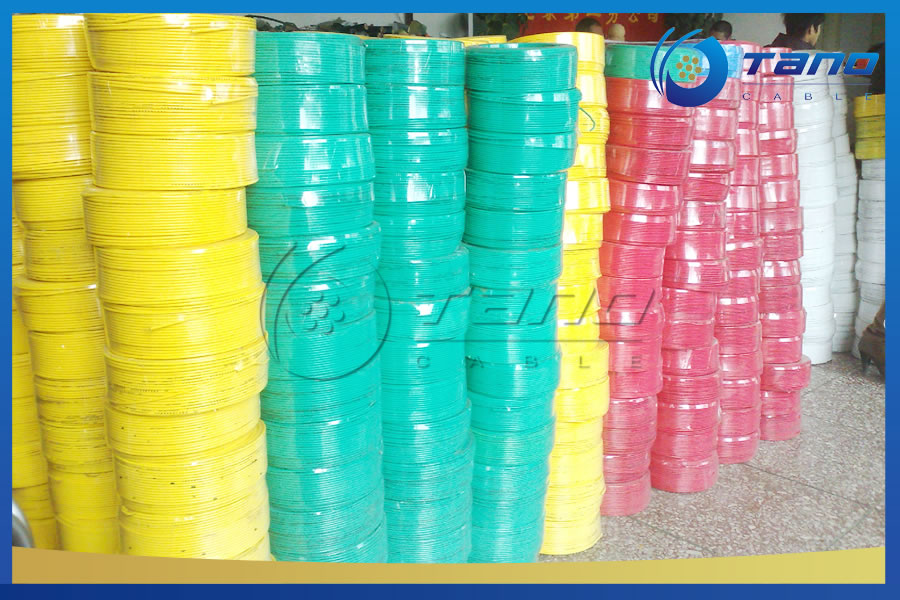

OUR FACTORY

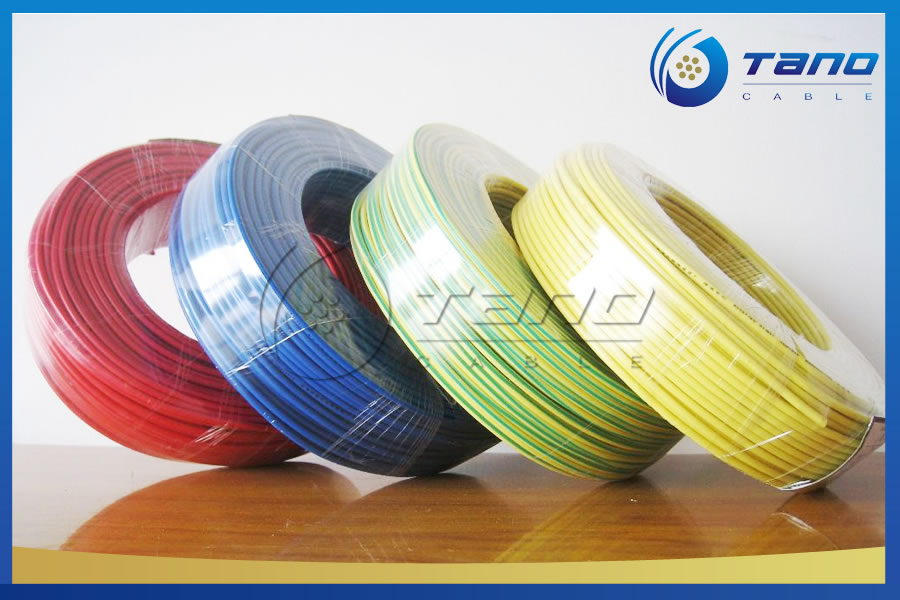

PACKING AND DELIVERY
