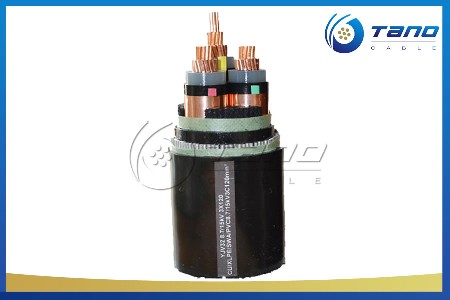

APPLICATION OF MV 50MM 3 CORE POWER CABLE IEC STANDARD

The three core MV power cables are designed for distribution of electrical power with nominal voltage Uo/U ranging from 1.8/3KV to 26/35KV and frequency 50Hz. They are suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors, underground and in water as well as for installation on cable trays for industries, switchboards and power stations.

IEC 60502 Part 1(1.8/3KV)

IEC 60502 Part 2(3.6/6KV to 18/30KV)

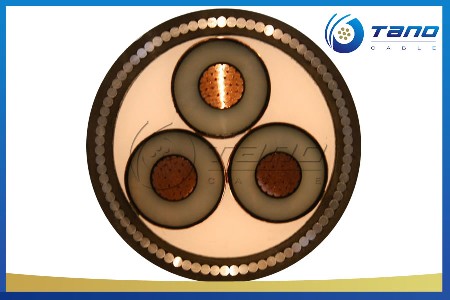

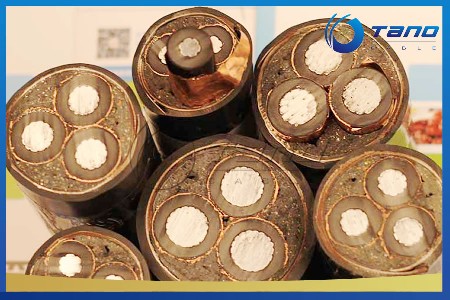

Conductor: Plain annealed copper or aluminum complying with IEC 60228 class 1 or 2.

Conductor Screen: The conductor screen consists of an extruded layer of non metallic, semi-conducting compound applied on top of a semi-conducting tape. The conductor screen is applied under triple extrusion process over the conductor along with the insulation and the insulation screen. The extruded semi-conducting compound is firmly bonded to the insulation to exclude all air voids and can be easily hand stripped on site. The conductor screen is not necessary for both PVC and EPR/HEPR insulated 1.8/3.6KV and 3.6/6KV Power Cable.

Insulation: Insulation is of polyvinyl chloride (PVC) intended for 1.8/3.6KV and 3.6/6KV Power Cable, cross-linked polyethylene compound (XLPE) or ethylene propylene rubber (EPR/HEPR).

Insulation Screen: The insulation screen consists of an extruded layer of non metallic, semi-conducting compound extruded over the insulation of each core. The extruded semi-conducting layer shall consist of bonded or cold strippable semi-conducting compound capable of removal for jointing or terminating. As an option, a semi-conducting tape may be applied over the individual cores or core assembly as a bedding for the metallic layer. The minimum thickness is 0.3 mm and the maximum resistivity is 500 Ohm-m at 90°C. The screen is tightly fitted to the insulation to exclude all air voids and can be easily hand stripped on site. The insulation screen is not necessary for both PVC and EPR/HEPR insulated 1.8/3.6KV and 3.6/6KV Power Cable. The screen may be covered by semi-conductive water blocking swellable tape to ensure longitudinal watertightness.

Service Life: 30years

Operating Temperature: up to 70°C (PVC insulation); up to 90°C (XLPE or EPR insulation)

Temperature Range: -5°C ( PVC or LSZH sheath ); -20°C ( PE sheath )

Short Circuit Temperature( 5 seconds maximum duration ): 140-160 °C (PVC insulation); 250°C (XLPE or EPR insulation)

Bending Radius: 15 x OD

Ground Temperature: 20°C

Ambient Temperature (air): 30°C

Depth of Soil: 0.8 m
