APPLICATIONS
These single core cables are designed for distribution of electrical power with nominal voltage 290/500kV. They are suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors, underground and in water as well as for installation on cable trays for industries, switchboards and power stations.

STANDARD
IEC 62067

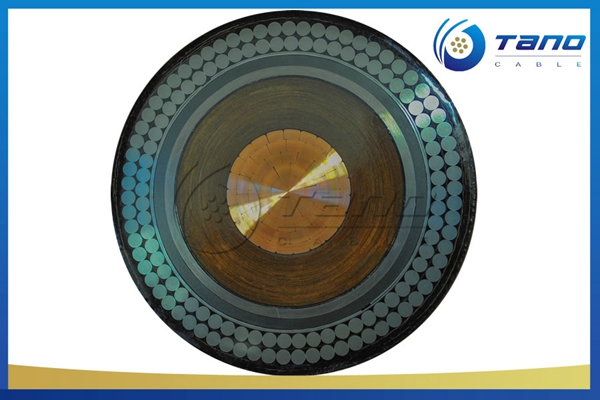

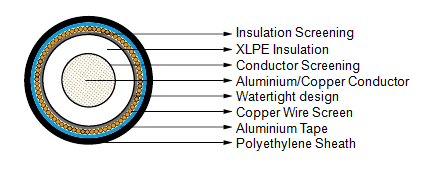

CONSTRUCTION

Conductor: The cable conductors can be made of copper or aluminium, depending on customer’s preference or current carrying capacity. Large size solid conductors are made of aluminium. Available constructions including: round solid conductors up to 2000mm² (RE);circular stranded compacted conductors up to 1200mm² (RM); circular conductors with shaped wires up to 2000mm² (RM, Keystone conductors); segmental conductors up to 2500mm² (RMS, Milliken conductors); oval shaped stranded compacted conductors up to 800mm² for external gas pressure cables (OM). Conductor Screen: Extruded layer of semi-conducting cross-linkable compound is applied over the conductor and shall cover the surface completely. Insulation: Insulation is of cross-linked polyethylene compound XLPE. Insulation Screen: Extruded layer of semi-conducting cross-linkable compound is applied over the insulation. Metallic Layer: The metallic layer may be applied over the core assembly collectively. The metallic screen shall consist of either copper tapes or a concentric layer of copper wires or a combination of tapes and wires. Separation Sheath: Aluminum Tape sheath Outer Sheath:

PE CONSTRUCTION PARAMETER

Nom. Cross-Section	Nom. Insulation	Copper Wire Screen	Approx. Overall	Approx. Weight
Area	Thickness	Area	Diameter	CU	AL
mm²	mm	mm²	mm	kg/m
800	35	170	126	20	15
1000(RM)	33	170	126	21	15
1000(RMS)	32	170	128	22	16
1200	31	170	130	24	16
1400	31	170	133	26	17
1600	31	170	136	28	18
1800	31	170	139	30	19
2000	31	170	143	33	20
2500	31	170	150	38	23

ELECTRICAL PROPERTIES

Nom. Cross-	DC		AC		Capacitance	Inductance	Current Ratings/Power Ratings(continuous load)
Section	Resistance @20°C		Resistance @90°C		per core		Cu conductor				Al conductor
Area	Cu	Al	Cu	Al			1 circuit		2 circuits		1 circuit	2 circuits
mm²	Ω/km	Ω/km	Ω/km	Ω/km	µF/km	mH/km	A/MVA				A/MVA
							trefoil installation
800	0.0221	0.0367	0.0317	0.05	0.124	0.45	628/544	498/431		537/465		427/370
1000(RM)	0.0176	0.0291	0.0276	0.0409	0.137	0.43	661/572	520/450		577/500		455/394
							flat installation
1000(RMS)	0.0176	0.0291	0.0232	0.0375	0.149	0.56	907/785	770/667		725/628		615/533
1200	0.0151	0.0247	0.0201	0.0319	0.159	0.55	968/838	818/708		782/677		661/572
1400	0.0129	0.0212	0.0175	0.0275	0.167	0.53	1031/896	868/752		838/726		707/612
1600	0.0113	0.0186	0.0156	0.024	0.174	0.52	1085/896	912/790		893/773		751/650
1800	0.0101	0.0165	0.0142	0.0213	0.18	0.51	1124/973	942/816		939/813		787/682
2000	0.009	0.0149	0.0129	0.0193	0.187	0.5	1159/1004	969/839		976/845		816/707
2500	0.0072	0.0119	0.0109	0.0156	0.202	0.47	1226/1062	1019/882		1063/921		884/766
