APPLICATION
Used primarily for, but not limited to, overhead secondary distribution lines. Installed on insulators, otherwise treated as a bare conductor.
STANDARD
Tano Cable's covered line wire meets or exceeds the following ASTM specifications: • B-230 Aluminum Wire, 1350-H19 for Electrical Purposes. • B-231 Aluminum Conductors, Concentric-Lay-Stranded. • B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR). • B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors. Tano Cable's covered line conductors meet all applicable requirements of ANSI/ICEA S-70-547.

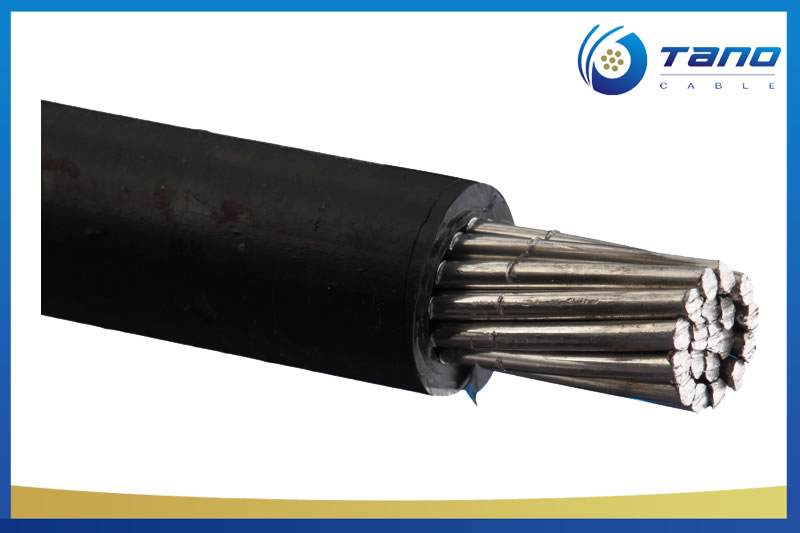

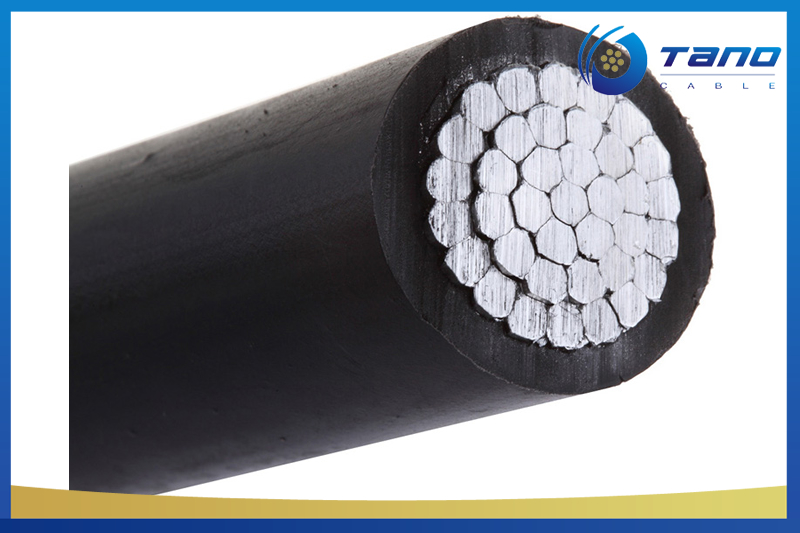

CONSTRUCTION
Aluminum alloy 1350-H19, 6201, or ACSR conductors, concentrically stranded. Covered with polyethylene or crosslinked polyethylene (XLP).
TECHNICAL DATA
Used primarily for, but not limited to, overhead secondary distribution lines. Installed on insulators, otherwise treated as a bare conductor.
STANDARD
Tano Cable's covered line wire meets or exceeds the following ASTM specifications: • B-230 Aluminum Wire, 1350-H19 for Electrical Purposes. • B-231 Aluminum Conductors, Concentric-Lay-Stranded. • B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR). • B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors. Tano Cable's covered line conductors meet all applicable requirements of ANSI/ICEA S-70-547.
CONSTRUCTION
Aluminum alloy 1350-H19, 6201, or ACSR conductors, concentrically stranded. Covered with polyethylene or crosslinked polyethylene (XLP).
TECHNICAL DATA
| Code Word | Equiv Dia (AWG)* | Size (kcmil) | Strand- ing | Cover Thickness (mils) | Total Diameter (mils) | Rated Strength (lbs.) | Weight Per 1000 ft. (lbs.) | Allowable Ampacity+ | ||
| XLP | Conv. Poly | HD Poly | ||||||||
| 6201 ALUMINUM Alloy | ||||||||||
| Hornbeam | 4 | 48.69 | 7 | 30 | 310 | 1360 | 60 | 60 | -- | 145 |
| Linden | 2 | 77.47 | 7 | 45 | 406 | 2160 | 99 | 99 | -- | 190 |
| Oilnut | 1/0 | 123.3 | 7 | 60 | 518 | 3440 | 159 | 159 | -- | 250 |
| Waterash | 2/0 | 155.4 | 7 | 60 | 567 | 4160 | 195 | 195 | -- | 290 |
| Shellbark | 3/0 | 195.7 | 7 | 60 | 622 | 5240 | 240 | 240 | -- | 335 |
| Planetree | 4/0 | 246.9 | 7 | 60 | 683 | 6610 | 297 | 297 | -- | 385 |
| *Diameter equivalent to ACSR construction or 1350 aluminum equivalent. +Ampacity ratings based on 75°C conductor temperature 25°C ambient temperature elevation - sea level. Emissivity 0.91 coefficient of absorption 0.95. Thermal resistivity of covering - 375°C M /Watt-CM. Wind speed 2 ft./sec. in sun. | ||||||||||
| Code Word | Size (AWG Or kcmil) | Strand- ing | Cover Thickness (mils) | Total Diameter (mils) | Rated Strength (lbs.) | Weight Per 1000 ft. (lbs.) | Allowable Ampacity+ | ||||
| XLP | Conv. Poly | HD Poly | |||||||||
| ALL- ALUMINUM | |||||||||||
| Apple | 6 | 1 | 30 | 222 | 445 | 31 | 31 | -- | 105 | ||
| Plum | 6 | 7 | 30 | 238 | 510 | 56 | 34 | -- | 105 | ||
| Pear | 4 | 1 | 30 | 264 | 710 | 47 | 47 | -- | 135 | ||
| Apricot | 4 | 7 | 30 | 285 | 790 | 51 | 51 | -- | 140 | ||
| Cherry | 2 | 1 | 45 | 348 | 1100 | 78 | 78 | -- | 180 | ||
| Peach | 2 | 7 | 45 | 373 | 1220 | 84 | 84 | 85 | 180 | ||
| Nectarine | 1 | 7 | 45 | 408 | 1470 | 104 | 104 | -- | 210 | ||
| Quince | 1/0 | 7 | 60 | 477 | 1790 | 136 | 136 | -- | 240 | ||
| Orane | 2/0 | 7 | 60 | 522 | 2260 | 167 | 167 | -- | 280 | ||
| Fig | 3/0 | 7 | 60 | 570 | 2740 | 205 | 205 | -- | 320 | ||
| Olive | 4/0 | 7 | 60 | 626 | 3450 | 253 | 253 | -- | 370 | ||
| Pomegranate | 4/0 | 19 | 60 | 632 | 3620 | 247 | 247 | -- | 370 | ||
| Mulberry | 266.8 | 19 | 60 | 694 | 4470 | 305 | 305 | -- | 430 | ||
| Annona | 336.4 | 19 | 60 | 765 | 5540 | 377 | 377 | -- | 495 | ||
| Molles | 397.5 | 19 | 80 | 861 | 6400 | 462 | 462 | -- | 545 | ||
| Huckleberry | 477 | 37 | 80 | 931 | 7820 | 538 | 538 | -- | 610 | ||
| Paw Paw | 556.5 | 37 | 80 | 992 | 8950 | 619 | 619 | -- | 670 | ||
| Breadfruit | 636.0 | 61 | 95 | 1081 | 10500 | 715 | 715 | -- | 720 | ||
| Persimmon | 795 | 61 | 95 | 1186 | 12900 | 877 | 877 | 881 | 825 | ||
| Grapefruit | 1033.5 | 61 | 95 | 1326 | 16500 | -- | 1118 | -- | 970 | ||
| +Ampacity ratings based on 75°C conductor temperature 25°C ambient temperature elevation - sea level. Emissivity 0.91 coefficient of absorption 0.95. Thermal resistivity of covering - 375°C M /Watt-CM. Wind speed 2 ft./sec. in sun. | |||||||||||
| Code | Size | Strand- | Cover | Total | Rated | Weight Per 1000 ft. (lbs.) | Allowable | ||
| Word | (AWG | ing | Thickness | Diameter | Strength | Ampacity+ | |||
| or | (mils) | (mils) | (lbs.) | ||||||
| kcmil) | XLP | Conv. | HD | ||||||
| Poly | Poly | ||||||||
| ACSR | |||||||||
| Walnut | 6 | 6/1 | 30 | 258 | 1130 | 47 | 47 | 47 | 105 |
| Butternut | 4 | 6/1 | 30 | 310 | 1770 | 72 | 72 | 72 | 135 |
| Hickory | 4 | 7/1 | 30 | 317 | 2240 | 83 | 83 | 84 | 135 |
| Pignut | 2 | 6/1 | 45 | 406 | 2710 | 118 | 118 | 119 | 180 |
| Beech | 2 | 7/1 | 45 | 415 | 3460 | 136 | 136 | 137 | 180 |
| Chestnut | 1 | 6/1 | 45 | 444 | 3370 | 145 | 145 | -- | 210 |
| Almond | 1/0 | 6/1 | 60 | 518 | 4160 | 190 | 190 | 191 | 235 |
| Pecan | 2/0 | 6/1 | 60 | 567 | 5040 | 233 | 233 | 235 | 270 |
| Filbert | 3/0 | 6/1 | 60 | 622 | 6290 | 288 | 288 | 290 | 305 |
| Buckeye | 4/0 | 6/1 | 60 | 683 | 7930 | 357 | 357 | 359 | 345 |
| Hackberry | 266.8 | 18/1 | 60 | 729 | 6540 | 354 | 354 | -- | 435 |
| +Ampacity ratings based on 75°C conductor temperature 25°C ambient temperature elevation - sea level. | |||||||||
| Emissivity 0.91 coefficient of absorption 0.95. Thermal resistivity of covering - 375°C M /Watt-CM. | |||||||||
| Wind speed 2 ft./sec. in sun. | |||||||||
