APPLICATION
Aerial bundled cables are mainly used for secondary overhead lines on poles or as feedes to residential premises.

STANDARD
Basic design to AS/NZS 3599 - 1 standard.

CONSTRUCTION

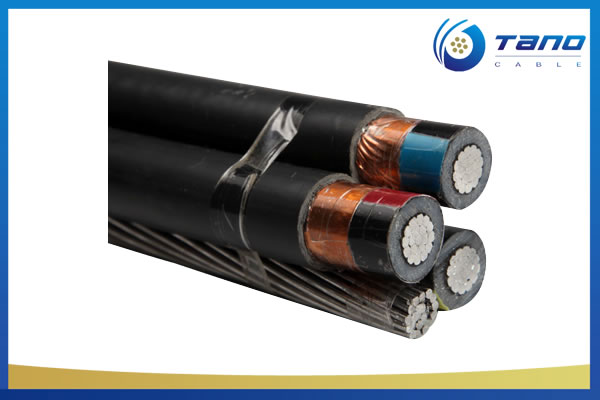

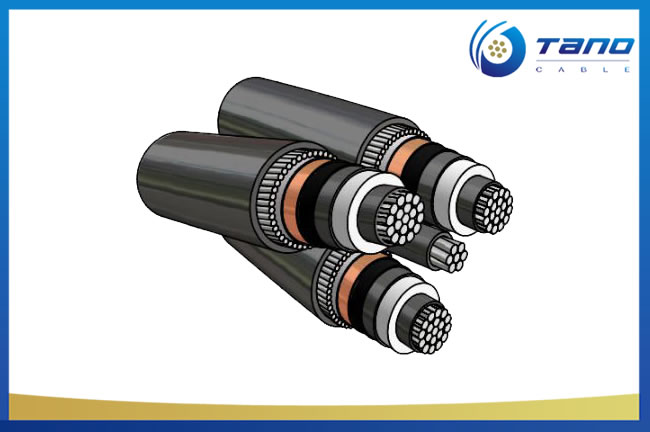

Phase Conductor: Circular compacted stranded H68 aluminium to BS2627. Conductor Screen: Extruded semi-conductive layer. Insulation: XLPE. Insulation Screen: Extruded semi-conductive layer. Metallic Screen(optional): Copper wire screen or copper tape screen. Separator: Semi-conductive swellable tape. outer Sheath: HDPE. Support Conductor: Galvanized steel wires. Assembly: Three XLPE insulated screened cores are bundled around the galvanized steel wires in a right hand lay.

CONSTRUCTION PARAMETERS
AS/NZS 3599 PART 1 6.35/11 kV AL/XLPE/HDPE Non-screened Cables

	Phase Conductor				Messenger
Number of Cores					Suspension	Nominal	Breaking
xNominal					Unit	Sectional	Load
Cross Section	Diameter	Thickness	Thickness	Thickness		Area
	of	of	of	of	Stranding
	Conductor	Insulation	Insulation	Sheath
			Screen
No.×mm²	mm	mm	mm	mm	No.×mm	mm²	KN
3x35	6.9	3.4	0.8	1.2	7/4.75	52.4	1370
3x50	8.1	3.4	0.8	1.2	7/4.75	54.6	1530
3x70	9.7	3.4	0.8	1.2	7/4.75	57.8	1790
3x95	11.4	3.4	0.8	1.2	7/4.75	61.3	2100
3x120	12.8	3.4	0.8	1.2	19/3.50	67.3	2540
3x150	14.2	3.4	0.8	1.2	19/3.50	70.1	2840
3x185	15.7	3.4	0.8	1.2	19/3.50	73.1	3190

Other cross-sections can be offered upon request. AS/NZS 3599 PART 1 6.35/11 kV AL/XLPE/CWS/HDPE Screened Cables

Number of					Thickness
Cores	Diameter		Thickness		of		Copper	Thickness	Galvanized	Nominal	Breaking
xNominal	of		of		Insulation		Wire Screen	of	Steel Wire	Sectional	Load
Cross	Conductor		Insulation		Screen		Stranding	Sheath	Stranding	Area
Section
No.×mm²	mm		mm		mm		No.×mm	mm	No.×mm	mm²	KN
light duty Screen
3x35	6.9		3.4			0.8	25/0.85	1.8	7/2.00	54.1		1820
3x35	6.9		3.4			0.8	25/0.85	1.8	19/2.00	58.1		2130
3x50	8.1		3.4			0.8	25/0.85	1.8	19/2.00	60.4		2300
3x70	9.7		3.4			0.8	25/0.85	1.8	19/2.00	63.6		2570
3x95	11.4		3.4			0.8	25/0.85	1.8	19/2.00	67		2900
3x120	12.8		3.4			0.8	25/0.85	1.8	19/2.00	69.8		3190
3x150	14.2		3.4			0.8	25/0.85	1.9	19/2.00	73		3530
3x185	15.7		3.4			0.8	25/0.85	1.9	19/2.00	76		3890
Heavy duty Screen
3x35		6.9		3.4		0.8	40/0.85	1.8	7/2.00	54.1		2050
3x35		6.9		3.4		0.8	40/0.85	1.8	19/2.00	58.1		2360
3x50		8.1		3.4		0.8	23/1.35	1.8	19/2.00	62.4		2820
3x70		9.7		3.4		0.8	32/1.35	1.8	19/2.00	65.6		3440
3x95		11.4		3.4		0.8	39/1.35	1.8	19/2.00	69		4030
3x120		12.8		3.4		0.8	39/1.35	1.8	19/2.00	71.8		4320
3x150		14.2		3.4		0.8	39/1.35	1.9	19/2.00	75		4670
3x185		15.7		3.4		0.8	39/1.35	1.9	19/2.00	78		5020

Other cross-sections can be offered upon request. AS/NZS 3599 PART 1 12.7/22 kV AL/XLPE/HDPE Non-screened Cables

	Phase Conductor				Messenger
					Suspension
Number of Cores					Unit	Nominal	Breaking
xNominal	Diameter	Thickness	Thickness	Thickness		Sectional	Load
Cross Section	of	of	of	of	Stranding	Area
	Conductor	Insulation	Insulation	Sheath
			Screen
No.×mm²	mm	mm	mm	mm	No.×mm	mm²	KN
3x35	6.9	5.5	0.8	1.2	7/4.75	61	1780
3x50	8.1	5.5	0.8	1.2	7/4.75	63.3	1970
3x70	9.7	5.5	0.8	1.2	7/4.75	66.5	2260
3x95	11.4	5.5	0.8	1.2	7/4.75	69.9	2600
3x120	12.8	5.5	0.8	1.2	19/3.50	75.9	3070
3x150	14.2	5.5	0.8	1.2	19/3.50	78.7	3390
3x185	15.7	5.5	0.8	1.2	19/3.50	81.7	3760

Other cross-sections can be offered upon request. AS/NZS 3599 PART 1 12.7/22 kV AL/XLPE/CWS/HDPE Screened Cables

Number of			Thickness
Cores	Diameter	Thickness	of	Copper	Thickness	Galvanized	Nominal	Breaking
xNominal	of	of	Insulation	Wire Screen	of	Steel Wire	Sectional	Load
Cross Section	Conductor	Insulation	Screen	Stranding	Sheath	Stranding	Area
No.×mm²	mm	mm	mm	No.×mm	mm	No.×mm	mm²	KN
light duty Screen
3x35	6.9	5.5	0.8	25/0.85	1.8	7/2.00	62.7	2280
3x35	6.9	5.5	0.8	25/0.85	1.8	19/2.00	66.7	2580
3x50	8.1	5.5	0.8	25/0.85	1.8	19/2.00	69	2780
3x70	9.7	5.5	0.8	25/0.85	1.9	19/2.00	72.6	3110
3x95	11.4	5.5	0.8	25/0.85	1.9	19/2.00	76	3460
3x120	12.8	5.5	0.8	25/0.85	2	19/2.00	79.2	3810
3x150	14.2	5.5	1	25/0.85	2	19/2.00	82.8	4230
3x185	15.7	5.5	1	25/0.85	2.1	19/2.00	86.2	4650
Heavy duty Screen
3x35	6.9	5.5	0.8	40/0.85	1.8	7/2.00	62.7	2510
3x35	6.9	5.5	0.8	40/0.85	1.8	19/2.00	66.7	2810
3x50	8.1	5.5	0.8	23/1.35	1.8	19/2.00	71	3300
3x70	9.7	5.5	0.8	32/1.35	1.9	19/2.00	74.6	3970
3x95	11.4	5.5	0.8	39/1.35	1.9	19/2.00	78	4600
3x120	12.8	5.5	0.8	39/1.35	2	19/2.00	81.2	4950
3x150	14.2	5.5	1	39/1.35	2	19/2.00	84.8	5360

Other cross-sections can be offered upon request.

TECHNICAL DATA

Nominal	Continuous Current Rating
Cross Section	Still Air	1m/s Wind	2m/s Wind
mm2	A	A	A
35	105	145	165
50	125	170	200
70	150	215	250
95	180	260	300
120	205	300	350
150	230	340	395
185	265	390	450
