APPLICATION
connection for light household appliances, e.g. kitchen utensils, desk lamps, floor lamps, vacuum cleaners, office machines, radios, etc. As far as these cables are admitted to the relevant specifications of the equipment, They are not permitted for use with cooking or heating apparatus. 218Y is equivalent to harmonized code H03VV-F.

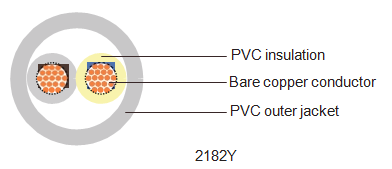

CONSTRUCTION
- Bare copper fine wire conductor
- Stranding to BS 6360 CL-5 or IEC 60228 CL-5
- PVC core insulation TI2 to BS 7655
- Green/Yellow grounding (3 conductors and above)
- PVC outer jacket TM2 to BS 7655
CORE IDENTIFICATION
2 Cores: Blue, Brown
3 Cores: Green/Yellow, Blue, Brown
4 cores: Green/Yellow, black, brown, blue
TECHNICAL CHARACTERISTICS
Working voltage: 300/300 volts
Test voltage: 2000 volts
Flexing bending radius: 7.5xOverall diameter
Static bending radius: 4xOverall diameter
Flexing temperature: -5º C to +70º C
Static temperature: -40º C to +70º C
Short circuit temperature: +160º C
Flame retardant: IEC 60332.1
Insulation resistance: 20 MΩxkm
