H07V-K building electrical copper conductor pvc insulated wires are not suitable to be installed for laying in tubes, under and surface mounting of plaster and also in closed installation conduits. H07V-K building electrical copper conductor pvc insulated wires are not allowed to install for direct laying on cable trays, channel or tanks. These types building wires are permitted for the inner wiring of equipment, distributor and switchboards and also for protective laying to the lightings with a nominal voltage up to 1000 V alternating current or up to 750 V direct current against earth.
STANDARD of H07V-K building electrical copper conductor pvc insulated wires
<HAR> HD 21.3 S3, VDE-0281 Part-3, CEI 20-20, CEI20-52, CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant.

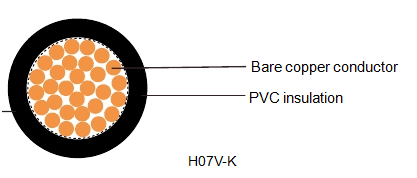

CONSTRUCTION of H07V-K building electrical copper conductor pvc insulated wires
Fine bare copper strands
Strands to VDE-0295 Class-5, IEC 60228 Class-5
Special PVC TI1 core insulation
Cores to VDE-0293 colors on chart
TECHNICAL CHARACTERISTICS of H07V-K building electrical copper conductor pvc insulated wires
Working voltage: 450/750V
Test voltage: 2500 volts
Flexing bending radius: 12.5 x Ø
Static bending radius: 12.5 x Ø
Flexing temperature: -5º C to +70º C
Static temperature: -30º C to +80º C
Short circuit temperature: +160º C
Flame retardant: IEC 60332.1
Insulation resistance: 10 MΩ x km
CONSTRUCTION PARAMETER of H07V-K building electrical copper conductor pvc insulated wires
|
AWG |
No. of Cores x |
Nominal |
Nominal |
Nominal |
Nominal |
|
Nominal Cross |
Thickness |
Overall |
Copper |
Weight |
|
|
Sectional Area |
of Insulation |
Diameter |
Weight |
|
|
|
No.xmm² |
mm |
mm |
kg/km |
kg/km |
|
|
16(30/30) |
1 x 1.5 |
0,7 |
3.1 |
14.4 |
20 |
|
14(50/30) |
1 x 2.5 |
0,8 |
3.6 |
24 |
31 |
|
12(56/28) |
1x4 |
0,8 |
4.3 |
38 |
48 |
|
10(84/28) |
1x6 |
0,8 |
4.9 |
58 |
69 |
|
8(80/26) |
1 x 10 |
1,0 |
6.4 |
96 |
121 |
|
6(128/26) |
1 x 16 |
1,0 |
8.1 |
154 |
211 |
|
4(200/26) |
1 x 25 |
1,2 |
9.8 |
240 |
303 |
|
2 (280/26) |
1 x 35 |
1,2 |
11.1 |
336 |
417 |
|
1 (400/26) |
1 x 50 |
1,4 |
13.1 |
480 |
539 |
|
2/0 (356/24) |
1 x 70 |
1,4 |
15.5 |
672 |
730 |
|
3/0 (485/24) |
1 x 95 |
1,6 |
17.2 |
912 |
900 |
|
4/0 (614/24) |
1 x 120 |
1,6 |
19.7 |
1152 |
1135 |
|
300 MCM (765/24) |
1 x 150 |
1,8 |
21.3 |
1440 |
1410 |
|
350 MCM (944/24) |
1 x 185 |
2,0 |
23.4 |
1776 |
1845 |
|
500MCM(1225/24) |
1 x 240 |
2,2 |
27.1 |
2304 |
2270 |
