APPLICATION of H05V-K Wiring Electrical Cable
H05V-K Wiring Electrical Cable pvc insulated wires are determined for installation to the inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributors boards, in tubes, under and surface mounting of plasters.
STANDARD of H05V-K Wiring Electrical Cable
<HAR> HD 21.3 S3, VDE-0281 Part-3, CEI 20-20, CEI20-52,
CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant
CONSTRUCTION of H05V-K Wiring Electrical Cable

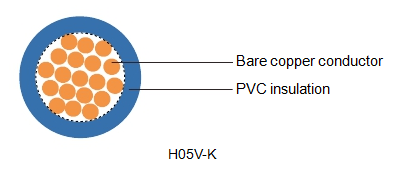

Fine bare copper strands
Strands to VDE-0295 Class-5, IEC 60228 Class-5
Special PVC TI1 core insulation
Cores to VDE-0293 colors on chart
TECHNICAL CHARACTERISTICS of H05V-K Wiring Electrical Cable
Working voltage: 300/500v
Test voltage: 2000 volts
Flexing bending radius: 12.5 x Ø
Static bending radius: 12.5 x Ø
Flexing temperature: -5º C to +70º C
Static temperature: -30º C to +80º C
Flame retardant: IEC 60332.1
Insulation resistance: 10 MΩ x km
CONSTRUCTION PARAMETER of H05V-K Wiring Electrical Cable
|
AWG |
No. of Cores x |
Nominal |
Nominal |
Nominal |
Nominal |
|
Nominal Cross |
Thickness |
Overall |
Copper |
Weight |
|
|
Sectional Area |
of Insulation |
Diameter |
Weight |
|
|
|
No.xmm² |
mm |
mm |
kg/km |
kg/km |
|
|
20(16/32) |
1 x 0.5 |
0,6 |
2.1 |
4.9 |
10 |
|
18(24/32) |
1 x 0.75 |
0,6 |
2.4 |
7.2 |
13 |
|
17(32/32) |
1x1 |
0,6 |
2.6 |
9.6 |
15 |
