APPLICATION of TW Building Electrical Copper Wires
TW Building Electrical Copper Wires is suitable for most current wiring solutions for residential, commercial and industrial environments. It is used in branch circuits for permanent installations.TW conductors in sizes 14 AWG to 8 AWG can be installed in conduits and other raceways. The temperature of installation shall not exceed 60°C.
STANDARD of TW Building Electrical Copper Wires
ASTM B3, B8
UL 83 - Thermoplastic-Insulated Wires and Cables
UL 1581 - Electrical Wires, Cables and Flexible Cords
CONSTRUCTION of TW Building Electrical Copper Wires

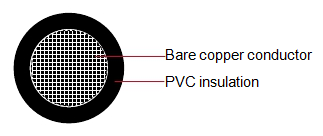

Conductor: Bare annealed copper conductor, solid or stranded
Insulation: PVC 60°C insulation
Color: upon request, black is preferable
CONSTRUCTION PARAMETER of TW Building Electrical Copper Wires
|
AWG |
Strand |
Nominal Insulation |
Nominal Overall |
Cable |
|||
|
or |
Thickness |
Diameter |
Weight |
||||
|
Inch/mm |
Inch |
mm |
Lbs/kft |
kg/km |
Lbs/kft |
kg/km |
|
|
14 |
1 |
0.03 |
0.76 |
0.138 |
3.5 |
19 |
28 |
|
12 |
1 |
0.03 |
0.76 |
0.154 |
3.9 |
27 |
40 |
|
10 |
1 |
0.03 |
0.76 |
0.177 |
4.5 |
40 |
60 |
|
8 |
1 |
0.045 |
1.14 |
0.24 |
6.1 |
67 |
100 |
|
14 |
7 |
0.03 |
0.76 |
0.146 |
3.7 |
19 |
29 |
|
12 |
7 |
0.03 |
0.76 |
0.165 |
4.2 |
29 |
43 |
|
10 |
7 |
0.03 |
0.76 |
0.193 |
4.9 |
44 |
65 |
|
8 |
7 |
0.045 |
1.14 |
0.26 |
6.6 |
72 |
107 |
