APPLICATION of H05VV-F / H05VVH2-F electrical wire
H05VV-F/H05VVH2-F are suited for medium mechanical stress in damp and wet environments such as refrigerators, washing machines, spin dryers and other appliances, as long as it meets applicable equipment specifications. H05VV-F/H05VVH2-F cables are also suited for cooking and heating apparatus, provided that the cable does not come into direct contact with the hot parts of the apparatus or with any other heat source. Further applications of this cable include: Fixed installation in furniture, partition walls, decorative covering, and in the hollow spaces of prefabricated building parts. They are not suitable for outdoor use, industrial (except clothing manufacture) or farming applications. Max operating voltage in single or three phase system is Uo/U 318/550 volts. In a direct system, max operating voltage is Uo/U 413/825 volts.
STANDARD of H05VV-F / H05VVH2-F electrical wire
<HAR>CEI 20-20/5 / 20-35 (EN60332-1) /20-52,0.5 - 2.5mm² to BS6500, 4.0mm² to BS7919, 6.0mm² generally to BS7919, VDE0281, CENELEC HD21.5, CE low voltage directive 73/23/EEC & 93/68/EEC., ROHS compliant.

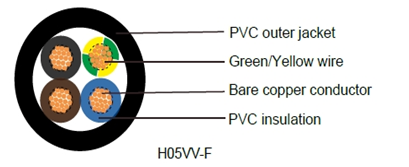

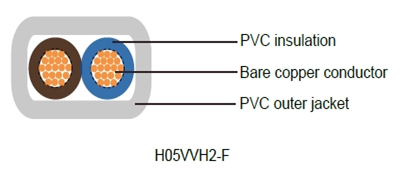

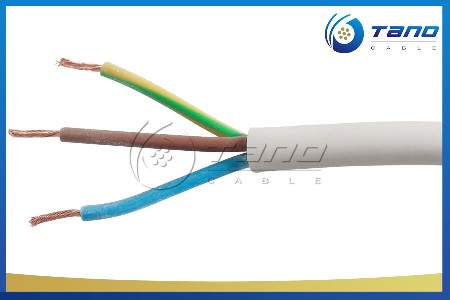

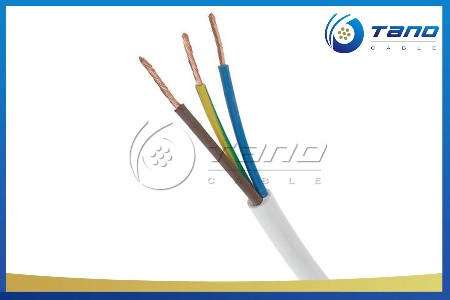

CONSTRUCTION of H05VV-F / H05VVH2-F electrical wire
Bare copper fine wire conductor
Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383
PVC core insulation T12 to VDE-0281 Part 1
Color coded to VDE-0293-308
Green-yellow grounding (3 conductors and above)
PVC outer jacket TM2
TECHNICAL CHARACTERISTICS of H05VV-F / H05VVH2-F electrical wire
Working voltage: 300/500 volts
Test voltage: 2000 volts
Flexing bending radius: 7.5 x Ø
Static bending radius: 4 x Ø
Flexing temperature: -5º C to +70º C
Static temperature: -40º C to +70º C
Short circuit temperature: +160º C
Flame retardant: IEC 60332.1
Insulation resistance: 20 MΩ x km
CONSTRUCTION PARAMETER of H05VV-F / H05VVH2-F electrical wire
|
AWG |
No. of Cores x Nominal Cross Sectional Area |
Nominal Thickness of Insulation |
Nominal Thickness of Sheath |
Nominal Overall Diameter |
Nominal Copper Weight |
Nominal Weight |
|
NO.*MM2 |
mm |
mm |
mm |
kg/Km |
kg/Km |
|
|
H05VV-F |
||||||
|
18(24/32) |
2 x 0.75 |
0.6 |
0.8 |
6.4 |
14.4 |
57 |
|
18(24/32) |
3 x 0.75 |
0.6 |
0.8 |
6.8 |
21.6 |
68 |
|
18(24/32) |
4 x 0.75 |
0.6 |
0.8 |
7.4 |
29 |
84 |
|
18(24/32) |
5 x 0.75 |
0.6 |
0.9 |
8.5 |
36 |
106 |
|
17(32/32) |
2 x 1.00 |
0.6 |
0.8 |
6.8 |
19 |
65 |
|
17(32/32) |
3 x 1.00 |
0.6 |
0.8 |
7.2 |
29 |
79 |
|
17(32/32) |
4 x 1.00 |
0.6 |
0.9 |
8 |
38 |
101 |
|
17(32/32) |
5 x 1.00 |
0.6 |
0.9 |
8.8 |
48 |
123 |
|
16(30/30) |
2 x 1.50 |
0.7 |
0.8 |
7.6 |
29 |
87 |
|
16(30/30) |
3 x 1.50 |
0.7 |
0.9 |
8.2 |
43 |
111 |
|
16(30/30) |
4 x 1.50 |
0.7 |
1 |
9.2 |
58 |
142 |
|
16(30/30) |
5 x 1.50 |
0.7 |
1.1 |
10.5 |
72 |
176 |
|
14(30/50) |
2 x 2.50 |
0.8 |
1 |
9.2 |
48 |
134 |
|
14(30/50) |
3 x 2.50 |
0.8 |
1.1 |
10.1 |
72 |
169 |
|
14(30/50) |
4 x 2.50 |
0.8 |
1.1 |
11.2 |
96 |
211 |
|
14(30/50) |
5 x 2.50 |
0.8 |
1.2 |
12.4 |
120 |
262 |
|
12(56/28) |
3 x 4.00 |
0.8 |
1.2 |
11.3 |
115 |
233 |
|
12(56/28) |
4 x 4.00 |
0.8 |
1.2 |
12.5 |
154 |
292 |
|
12(56/28) |
5 x 4.00 |
0.8 |
1.4 |
13.7 |
192 |
369 |
|
10(84/28) |
3 x 6.00 |
0.8 |
1.1 |
13.1 |
181 |
328 |
|
10(84/28) |
4 x 6.00 |
0.8 |
1.3 |
13.9 |
230 |
490 |
|
H05VVH2-F |
||||||
|
18(24/32) |
2 x 0.75 |
0.6 |
0.8 |
4.2 x 6.8 |
14.4 |
48 |
|
17(32/32) |
2 x 1.00 |
0.6 |
0.8 |
4.4 x 7.2 |
19.2 |
57 |
